超微万兆主板X10DRD-ITP 只有CPU1才能使用NVME SSD的注意事项

超微万兆主板X10DRD-ITP 只有CPU1才能使用NVME SSD的注意事项

仅仅针对
使用PCI-E NVME SSD

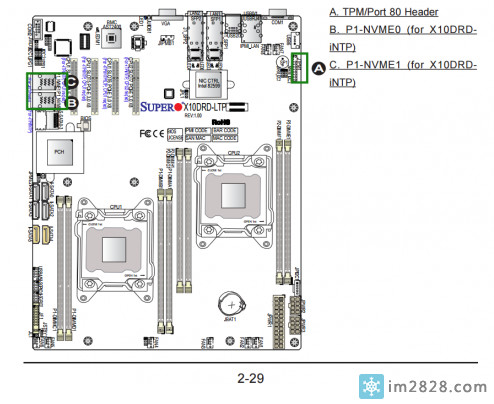

NVM Express Connections (For X10DRD-iNTP Only)Two NVM Express ports, supported by CPU1, are located on the motherboard.P1-NVME ports 0/1 provide high-speed, low-latency PCI-Exp. 3.0 x4 connectionsdirectly from the CPU to NVMe Solid State (SSD) drives. This greatly increasesSSD data-throughput performance and significantly reduces PCI-E latency bysimplifying driver/software requirements resulted from direct PCI-E interface fromthe CPU to the NVMe SSD drives.

这个是官方万兆提供的数据！

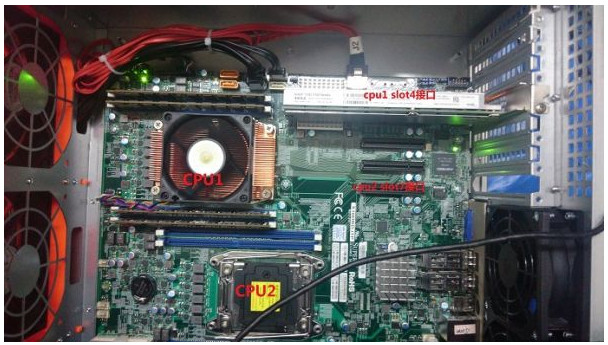

解释为 只有CPU1 这个SLOT4接口才能使用 NVME技术 可以支持X4和X8

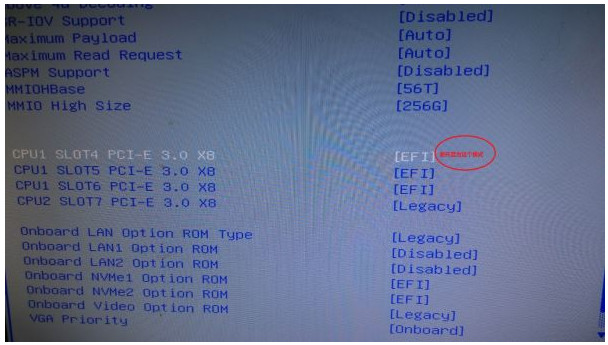

以下为服务器具体设置
